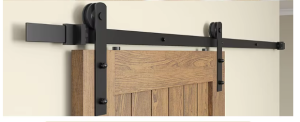

Wholesale 6.6ft American style barn door hardware kit -HM-2001
【Heavy-Duty Sturdy】The American style barn door hardware kit is crafted from 6mm thick, high-density premium carbon steel. Its surface features a high-temperature black powder coating. Equipped with corrosion resistance, color retention, rust prevention, waterproofing, and fire resistance, it ensures extended product life.
【Wide Applicability 】 Rustic style suitable for indoor decoration in kitchen, bedroom, dressing room, club, pub and so on;It is also a nice door accessory for barns, garages, stables, etc.
【American style barn door hardware kit Fit】 Door Weight Capacity: 330lbs/150kg ; Fit door panel thickness: 1-3/8″ to 1-3/4″. Rail is pre-drilled with 16″ hole apart.
【American style barn door hardware kit Included】
American style barn door track; Barn door roller with bolts; Barn door Stoppers; Lag Bolts and Spacers; Floor guide ; Anti-jump pads ; Installation Manual.
JIANSEN HARDWARE is built on selection and service. We carry American style barn door hardware kit and other home hardwares from leading manufacturers. Customers will find everything, from classical flat track hardware to modern rode pipe stainless steel hardware in Jiansen.
Buy with confidence.
Buy from the original.
Buy from JIANSEN HARDWARE
Wholesale I shape American style barn door hardware kit-HM2001
Jiansen’s most popular product
For both indoor and outdoor uses
Suitable for both solid and hollow doors
Comes with all necessary fittings

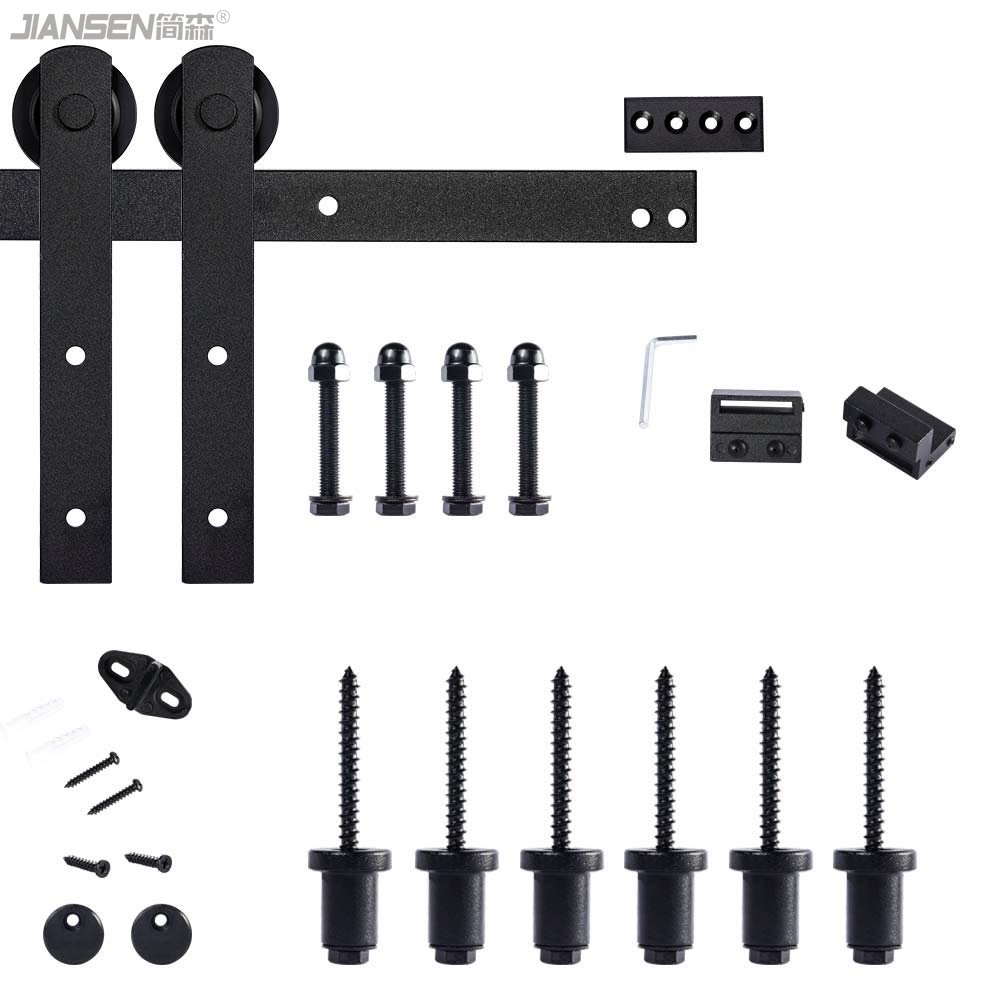

Package Included :
American style barn door Tracks at length ordered
American style barn door Hangers and Wheels
American style barn door Stoppers
Lag Bolts and Spacers
T type Floor guide to support the bottom of the door
Anti-jump disks for keeping roller on rail
This modern twist on the classic American style barn door hardware kit not only saves space, it allows the ability to open up multiple rooms without the annoyance. Suitable for living rooms, kitchens, bedrooms, storage rooms, bathrooms, and study rooms.

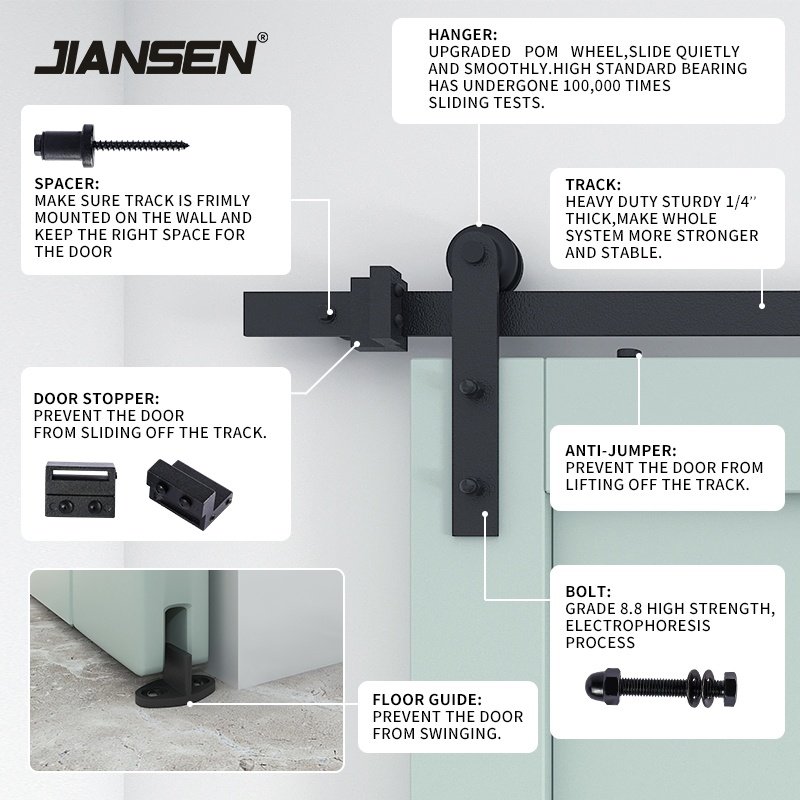

American style barn door hardware kit
American style barn door Tracks
At Any length you want
Thickness-6mm
Black powder coated

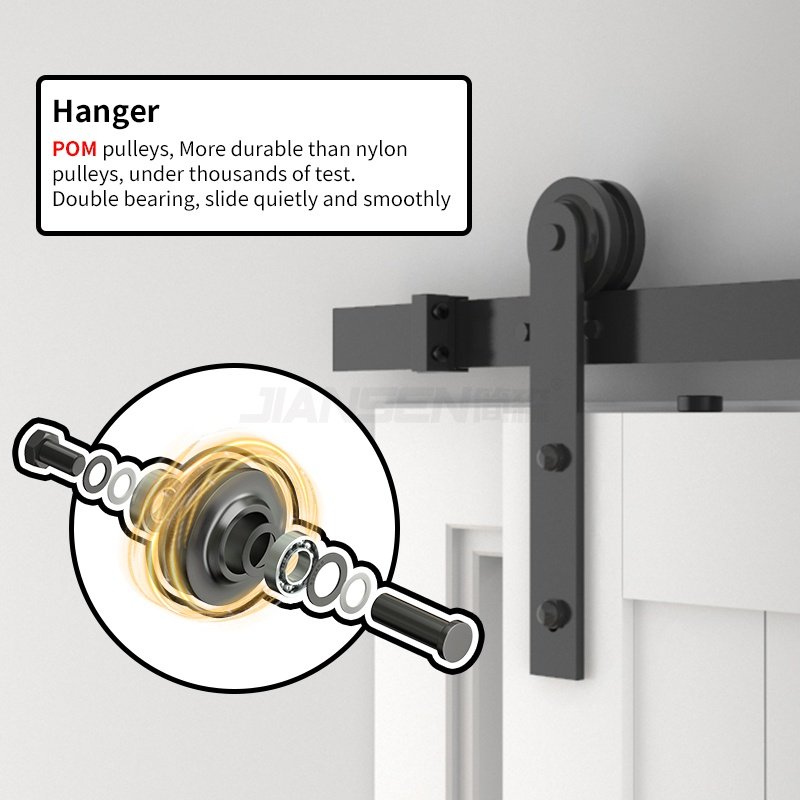

American style barn door Roller
POM wheel-More durable
Double bearing
Quietly & Smoothly
American style barn door Stoppers
Durable rubber parts
Prevent the door from sliding off the track
Anti-jump disks
keeping roller on rail
POM material
Prevent the door from lifting off the track.
Floor guide POM material
Prevent the door from swinging.
Check the Link,You can watch the intallation video for the American style barn door hardware kit here.
1
STANDARD SYSTEM
Systems include one door and a single track.
2

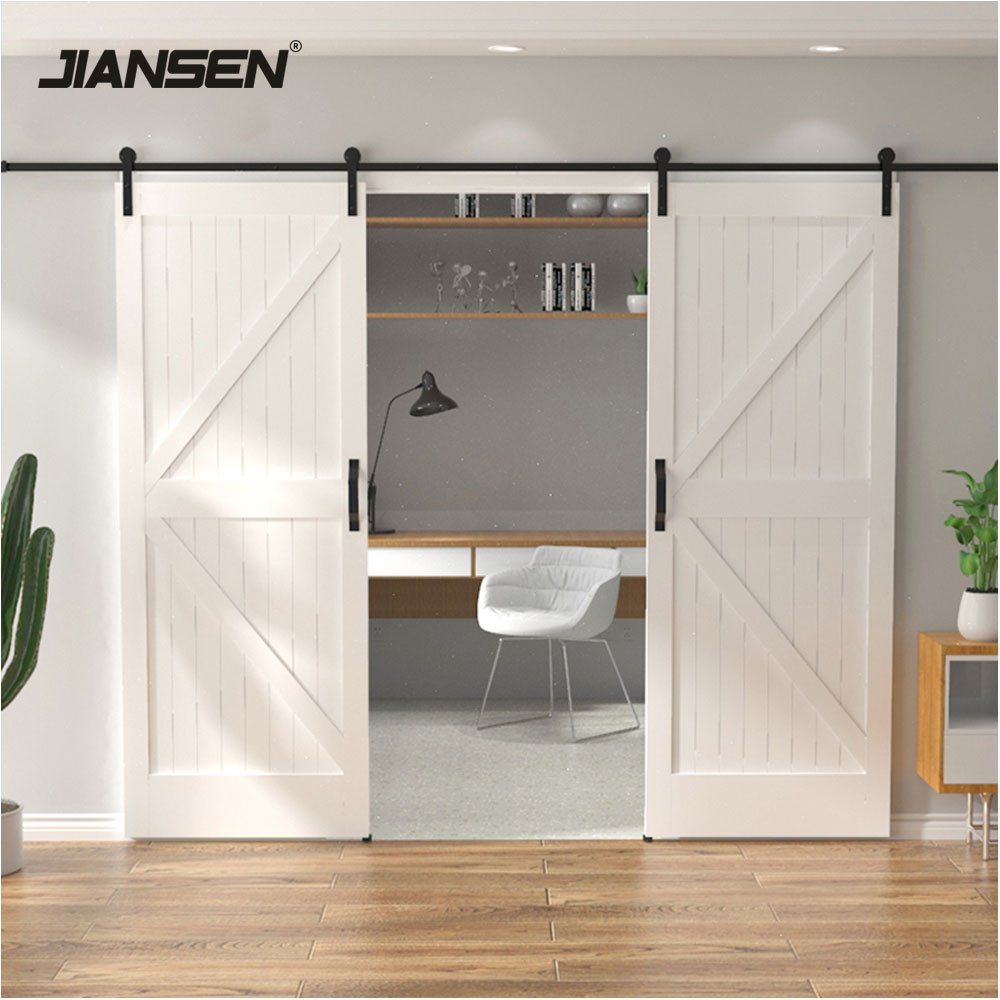

BIPART SYSTEMS
Systems include one track and two or more doors.
3
SINGLE TRACK BYPASS
Systems includes one track and two or more doors.
4
BYPASS SYSTEM
Systems include two or more tracks and two or more doors.
FAQ – American style barn door hardware kit
Q-Can I cut the track to fit my wall?
A-Yes, the track can be cut to any length you want. Here we recommend using an angle grinder to cut the flat track.
Q-What is the weight capacity for the American style barn door hardware kit ?
A-Your door limited 330lbs/150kg.
Q-What is the compatible door thickness ?
A-It is better for 1-3/8″ ~ 1-3/4″(35-45mm).
Please Note: If you have door thickness that falls out of this range, please let us know your exact door thickness so that we can prepare shorter hex bolts for your thinner doors, longer hex bolts and spacer extenders for your thicker doors.
Q-When do I need a headboard?
A-a. If the pre-drilled holes in the rail don’t line up with your wall studs.
b. If there is a doorway trim.
Attach a header board with the same thickness as your doorway trim into your studs first, and then mount the rail onto the header board.
Q-Does the kit include the soft close?
A-The American style barn door hardware kit doesn’t include the soft close,if you need it,you can contact us to quote the soft close with sliding barn door hardware together.
Q-Does the wood door included or not?
A-The American style barn door hardware kit does’t include the wood door,but Jiansen supply the wood door,you can contact us to add it.
Jiansen Hardware is a proud owner of a specialized factory and manufacturer of American style barn door hardware kit. We have been years in expertise in the industry and been designing and manufacturing American style barn door hardware kit for around 20 years. Our focus is on providing high -quality low-priced products to our customers. Our company accumulating excellent reputation and experience that keep you get the best products and services.
Q:Are you Manufacturer or Trading Company?
A:We are Manufacturer,we have our own factory with designing, manufacturing, marketing and exporting together with our office.
Q:How many employees are in the line of business?
A:Totally, 100+ people; 5 of which focus on business with foreign clients and more than 100 people are in the production line.
Q:Can you stamp the customers’ own logo and their own package?
A:Yes,of course acceptable.We can print it on the Lable, carton,installation manul and etc.
Q:Where is your factory?
A:We are located in Hangzhou, the capital of Zhejiang ,and also one of the most beautiful city of China.
Q:Can you supply the other customers required materials?
A:Yes,we can also supply the material report.
Q:Does OEM/ODM is available for your company?
A:Yes,OEM/ODM is available and welcomed for our company.We have the ability of technical innovation as well as research & development.We can develop new mold and undertake OEM production.
Q:What type of materials does your factory use for?
A:We usuall use Steel-Q235 and Zinc Alloy 4-1(NO.5) which brought from the biggest material factory in Hangzhou.
Q:What is the leading time for sample and bulk order
A:Sample can ship out 1-2 days,bulk order 20-25 days.
