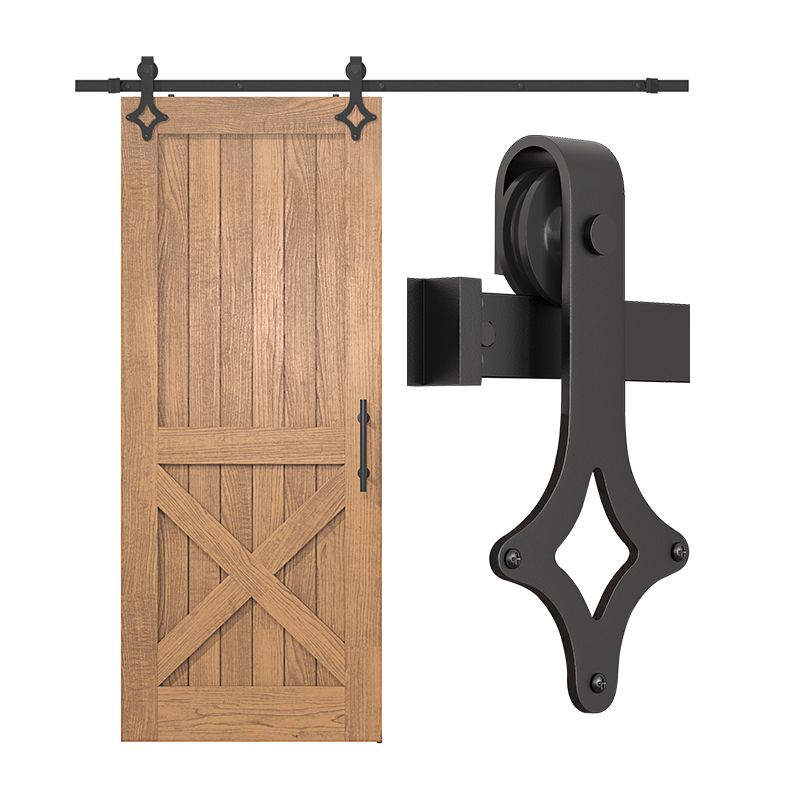

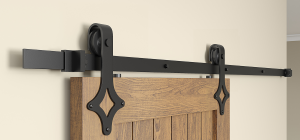

Classic Star style barn door and hardware complete kit-HM2010
【Heavy-Duty Sturdy】The barn door and hardware complete kit is crafted from 6mm thick, high-density premium carbon steel. Its surface features a high-temperature black powder coating. Equipped with corrosion resistance, color retention, rust prevention, waterproofing, and fire resistance, it ensures extended product life.
【Wide Applicability 】 Rustic style suitable for indoor decoration in kitchen, bedroom, dressing room, club, pub and so on;It is also a nice door accessory for barns, garages, stables, etc.
【Barn door and hardware complete kit】 Door Weight Capacity: 330lbs/150kg ; Fit door panel thickness: 1-3/8″ to 1-3/4″. Rail is pre-drilled with 16″ hole apart.
【Barn door and hardware complete kit Included】
Sliding Barn door track; Barn door roller with bolts; Barn door Stoppers; Lag Bolts and Spacers; Floor guide ; Anti-jump pads ; Installation Manual.
JIANSEN HARDWARE is built on selection and service. We carry barn door and hardware complete kit and other home hardwares from leading manufacturers. Customers will find everything, from classical flat track hardware to modern rode pipe stainless steel hardware in Jiansen.
Buy with confidence.
Buy from the original.
Buy from JIANSEN HARDWARE
Jiansen’s most popular product
For both indoor and outdoor uses
Suitable for both solid and hollow doors
Comes with all necessary fittings

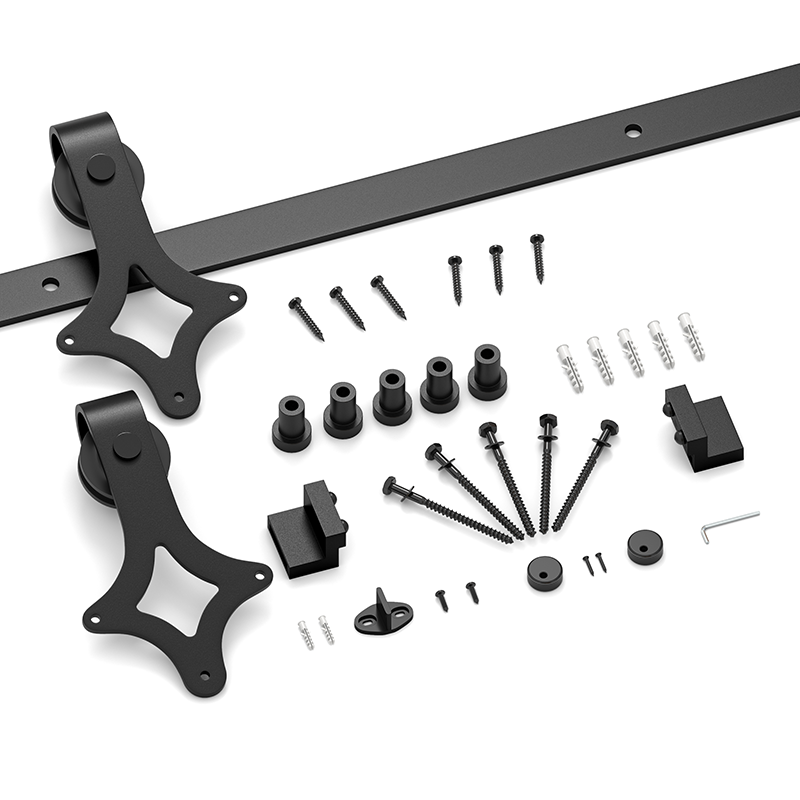

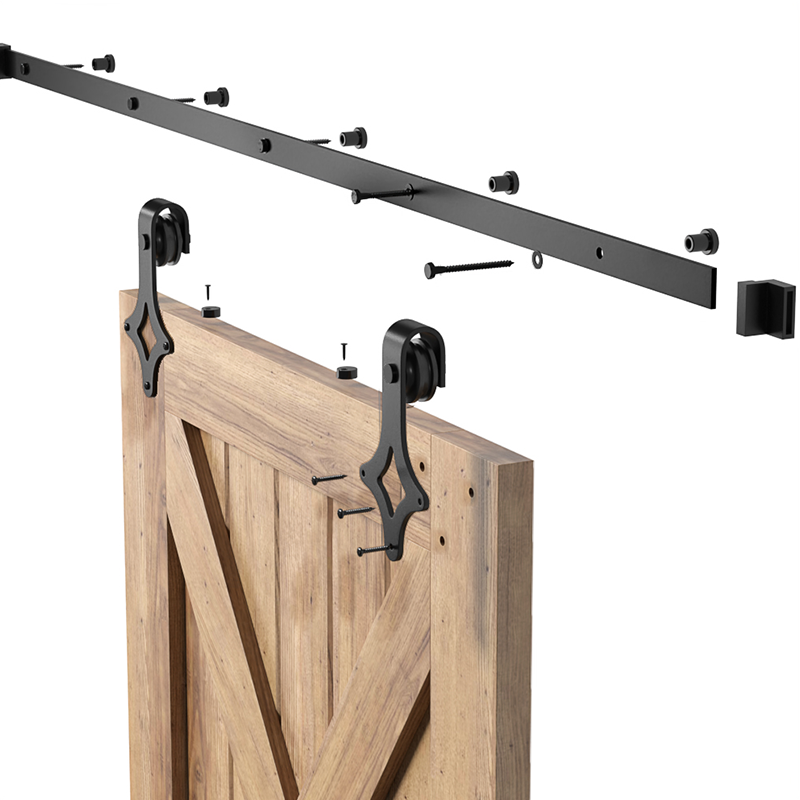

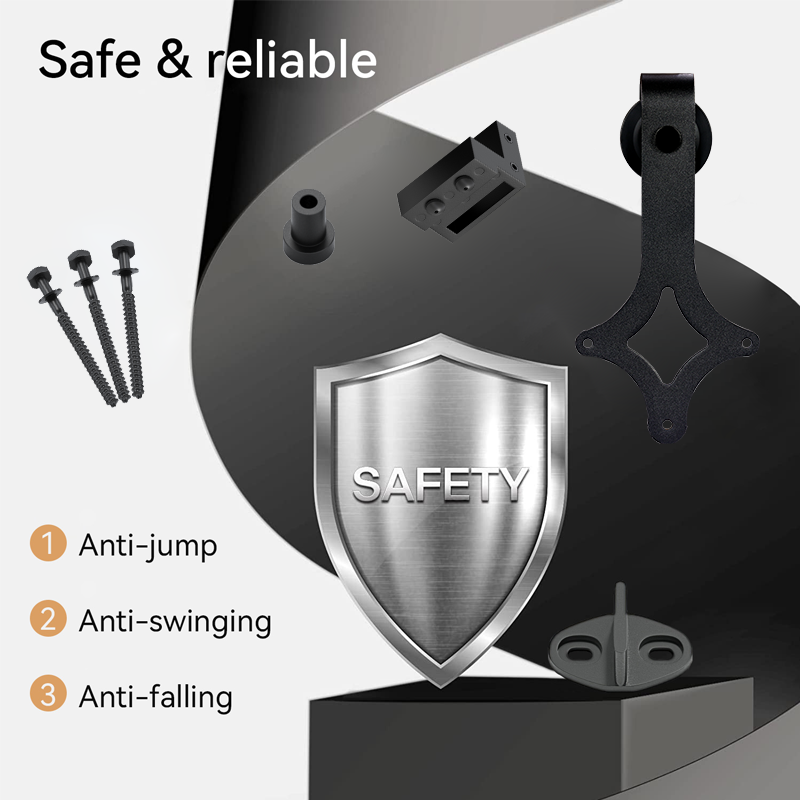

Package Included :
Sliding barn door Tracks at length ordered
Sliding Barn door Hangers and Wheels
Sliding barn door Stoppers
Lag Bolts and Spacers
T type Floor guide to support the bottom of the door
Anti-jump disks for keeping roller on rail
This modern twist on the classic barn door and hardware complete kit not only saves space, it allows the ability to open up multiple rooms without the annoyance. Suitable for living rooms, kitchens, bedrooms, storage rooms, bathrooms, and study rooms.
barn door and hardware complete kit
Sliding barn door Tracks
At Any length you want
Thickness-6mm
Black powder coated

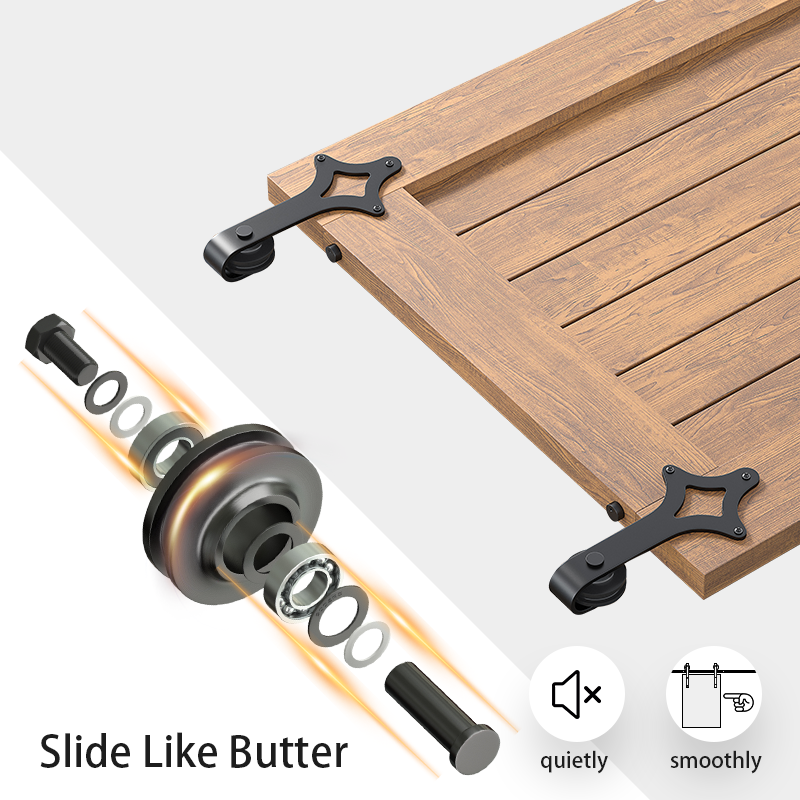

Sliding Barn Door Roller
POM wheel-More durable
Double bearing
Quietly & Smoothly
Sliding barn door Stoppers
Durable rubber parts
Prevent the door from sliding off the track

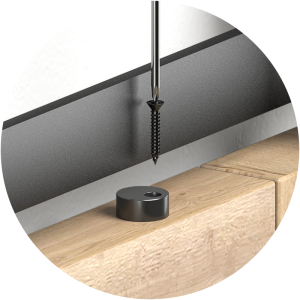

Anti-jump disks
keeping roller on rail
POM material
Prevent the door from lifting off the track.
Floor guide POM material
Prevent the door from swinging.
|
Product Name
|
Classic Star style barn door and hardware complete kit-HM2010
|
|
Material
|
Carbon Steel
|
|
Finished
|
Black Powder Coating
|
|

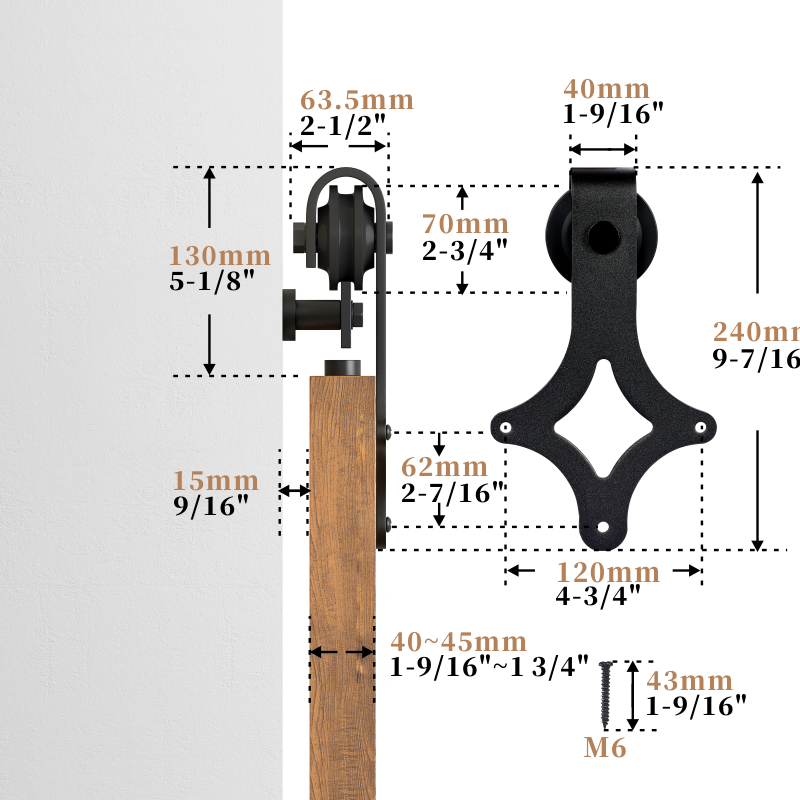

Track Size
|
Width:40 mm(1.575 inch) / Thickness:6 mm (0.236 inch) / Length: Any length accepted
|
|
Roller Material
|
POM barn door hanging roller / wheel / pulley
|
|
Load Capacity
|
150 kg (330LBS)sliding barn doors
|
|
Application
|
Home / Office / Hotel / Industry barn doors
|
|
Sample
|
Available for Free
|
|
Warranty
|
12 months
|
Check the Link,You can watch the intallation video for the barn door and hardware complete kit here.
1
STANDARD SYSTEM
Systems include one door and a single track.
2

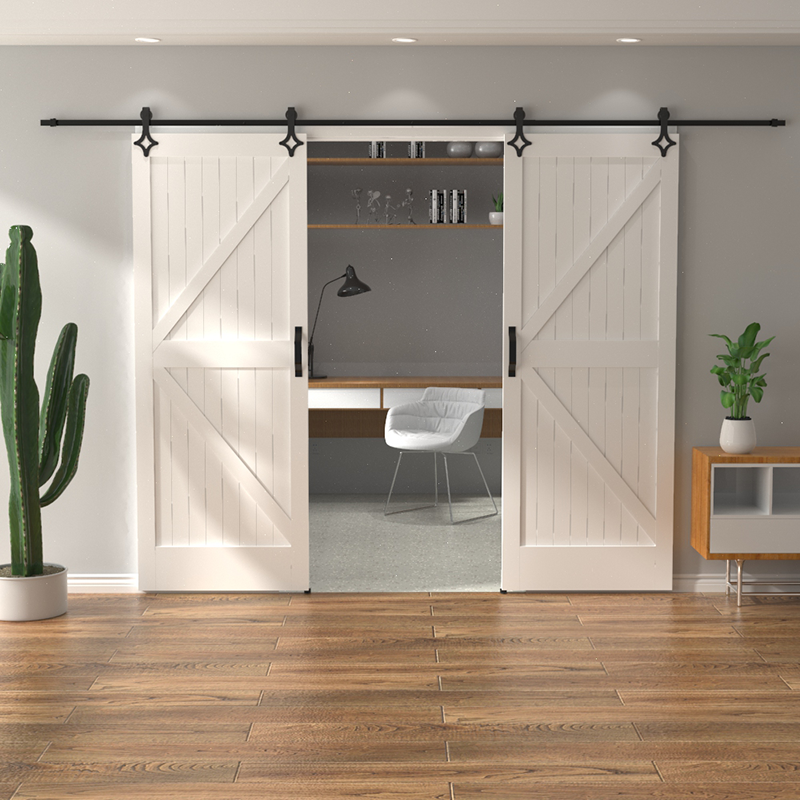

BIPART SYSTEMS
Systems include one track and two or more doors.
3
SINGLE TRACK BYPASS
Systems includes one track and two or more doors.
4
BYPASS SYSTEM
Systems include two or more tracks and two or more doors.
FAQ – Barn door and hardware complete kit
Q-Can I cut the track to fit my wall?
A-Yes, the track can be cut to any length you want. Here we recommend using an angle grinder to cut the flat track.
Q-What is the weight capacity for the barn door and hardware complete kit?
A-Your door limited 330lbs/150kg.
Q-What is the compatible door thickness ?
A-It is better for 1-3/8″ ~ 1-3/4″(35-45mm).
Please Note: If you have door thickness that falls out of this range, please let us know your exact door thickness so that we can prepare shorter hex bolts for your thinner doors, longer hex bolts and spacer extenders for your thicker doors.
Q-When do I need a headboard?
A-a. If the pre-drilled holes in the rail don’t line up with your wall studs.
b. If there is a doorway trim.
Attach a header board with the same thickness as your doorway trim into your studs first, and then mount the rail onto the header board.
Q-Does the kit include the soft close?
A-The barn door and hardware complete kit doesn’t include the soft close,if you need it,you can contact us to quote the soft close with barn door and hardware complete kit together.
Q-Does the wood door included or not?
A-The barn door and hardware complete kit does’t include the wood door,but Jiansen supply the wood door,you can contact us to add it.
