Installing a Post Latch and Strap Hinge Kit can significantly enhance the functionality and security of your gate. Whether you’re building a new fence, replacing old hardware, or upgrading your gate, this installation guide will provide you with detailed steps and tips for a successful installation.
Understanding the Components

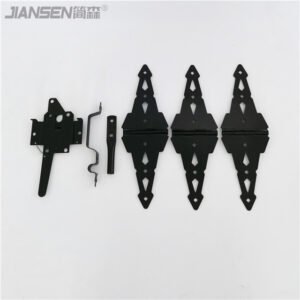

Before diving into the installation process, it’s essential to familiarize yourself with the components of a Post Latch and Strap Hinge Kit. Typically, the kit includes:
- Strap Hinges: These are flat metal hinges that attach to the gate and post, allowing the gate to swing open and close.
- Post Latch: This is the locking mechanism that secures the gate when closed.
- Screws and Fasteners: These are included to secure the hinges and latch to the gate and post.
- Mounting Plates: Sometimes included for added support and stability.
Tools You Will Need
Having the right tools on hand is crucial for a smooth installation. Here’s a list of tools you may need:
- Drill with drill bits
- Screwdriver (manual or electric)
- Level
- Tape measure
- Wrench set
- Hammer
- Pencil or chalk for marking
- Safety goggles and gloves
Step-by-Step Installation Guide
1. Prepare Your Gate and Posts
Before you begin the installation, ensure that your gate and posts are properly aligned and level.
- Check the Alignment: Stand the gate up next to the post and check if it swings freely without any obstructions.
- Adjust as Necessary: If the gate is too high or too low, adjust the height of the hinges on the gate or the mounting height on the post.
2. Mark the Locations
Using a pencil or chalk, mark where you will install the strap hinges and the latch.
- Hinge Placement: The strap hinges are usually installed about 6-12 inches from the top and bottom of the gate. Mark these positions on both the gate and the post.
- Latch Placement: The post latch should be positioned at a height that is comfortable to reach when the gate is closed, usually around waist height.
3. Drill Pilot Holes
Once you have marked your positions, drill pilot holes for the screws, this step helps to prevent the wood from splitting and ensures a secure fit.
- Drill at Marked Locations: Using a drill bit that matches the size of your screws, drill holes through the marks for both the hinges and the latch.
- Depth: Ensure the holes are deep enough to accommodate the length of the screws without protruding.
4. Attach the Strap Hinges
Now it’s time to attach the strap hinges to the gate and the post.
- Position the Hinges: Align the hinges with the pilot holes and secure them using screws.
- Tighten Securely: Use a screwdriver or a wrench to tighten the screws, ensuring that the hinges are firmly attached and do not wobble.
5. Hang the Gate
With the hinges attached, you can now hang the gate.
- Lift the Gate: Align the hinges on the gate with the corresponding hinges on the post and lift the gate into place.
- Secure the Hinges: If the hinges have a pin or bolt that goes through them, make sure to insert and secure this.
6. Install the Post Latch
Next, install the post latch for added security.
- Position the Latch: Align the latch mechanism with the pilot holes you drilled earlier.
- Secure with Screws: Attach the latch to the post using screws, ensuring it aligns properly with the gate when closed.
7. Test the Gate
After the installation, it’s crucial to test the gate’s functionality.
- Open and Close: Open and close the gate several times to ensure it swings freely and latches securely.
- Check Alignment: Make sure the gate remains level and that the latch engages without excessive force.
8. Make Adjustments
If you notice any issues during the testing phase, make the necessary adjustments.
- Tighten Screws: If there’s any movement in the hinges or latch, tighten the screws.
- Adjust Hinges: If the gate is dragging or not aligning properly, consider adjusting the hinges slightly.
Maintenance Tips
Once your Post Latch and Strap Hinge Kit is installed, regular maintenance is key to ensuring its longevity and effectiveness.
- Lubricate Moving Parts: Periodically apply lubricant to the hinges and latch to keep them operating smoothly.
- Inspect for Wear: Regularly check for any signs of rust or wear, especially if the hardware is exposed to the elements.
- Tighten Screws: As time passes, screws may loosen, so periodically check and tighten them as needed.
Conclusion
Installing a Post Latch and Strap Hinge Kit may seem daunting, but with the right tools, preparation, and guidance, it can be a straightforward process. By following these steps, you can enhance the security and functionality of your gate, ensuring it operates smoothly for years to come. Remember that regular maintenance will keep your installation in optimal condition, allowing you to enjoy the benefits of your secure and stylish gate. Whether you’re a DIY enthusiast or a homeowner looking to improve your property, this installation is a worthy investment.
